EFILIVE Autocal Package Duramax
Duramax Autocal V3 Package
DURAMAX EFILIVE AUTOCAL PACKAGE
- VIN Number Tire Size (if different than stock) Auto or Manual Trans
- Please specify the tune(s) you are looking for; most common tunes are:
- 0hp Modified Stock (lightweight)
- 25hp Tow (With brake if LLY+)
- 45hp Economy
- 75hp Street (transmission tune suggested)
- 90hp performance (max HP on 2001-2010)
- 120hp Race (lml only)
**Transmissiong tuning for line pressure changes strongly suggested for 75hp+ tunes**
*Transmission tuning available for LWN and LML Duramax's*
*2001-2010 Dmax's we do not build transmission tunes unless the transmission is a upgraded build*
*We offer Lightweight (off-road) and emissions compliant tunes*
Transmission tuning information
We have been working on developing our own A50 and T87 Alison trans tuning over the past few months and we feel its ready to offer to everyone. Our trans tuning will have the following features -Modified Shift speeds (RPM/speed at which the shift is commanded) -Modified Shift timing (time it takes to complete a shift) -Improved TCC lockup strategy -Increased line pressure at all times (Similar to what the EPC fooler does) -Improved torque management, both during shifts and in gear As well as the ability to tweak the trans tuning to individual customers request To start we will require the stock reads to be sent in with the order until we establish a complete library of files like we currently have for the ECM side, once we get a library of files then no longer will a read need to be done we will be able to supply the correct file for the truck very much like we do the ECM side of things. Same rules apply to the LWN transmission tuning.
**IF you are ordering an autocal package for a CANYON/COLORADO 2.8, there are only single tunes available. Please specify what HP level you want in the last box. PLEASE NOTE (0-90hp)**
*** WE CANNOT SHIP AUTOCALS OUT PRELOADED WITH THE COLORADO/CANYON 2.8 TUNES BECAUSE WE REQUIRE YOU TO READ THE STOCK FILE USING THE AUTOCAL AND THEN EMAILING IT INTO US SO WE CAN MODIFY YOUR SPECIFIC FILES AND EMAIL THEM BACK TO YOU TO LOAD UP!**
DSP5 SWITCH PINOUTS
LB7
Blue connector, pin 69
Blue connector, pin 49
LLY
Grey connector, pin 32
Grey connector, pin 50
LBZ & LMM
Connector 1 (larger one), pin 46
Connector 1 (larger one), pin 54
LML
black - 35
yellow - 11

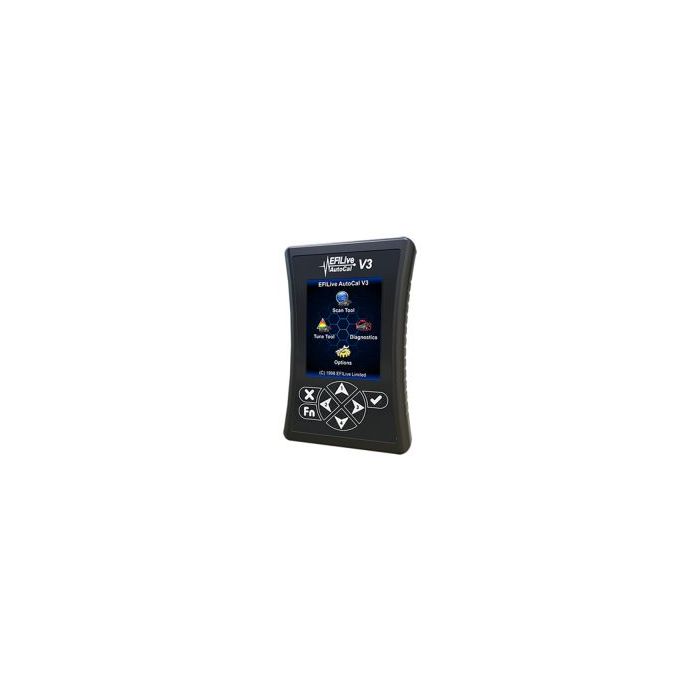

AutoCal V3
EFILive is pleased to announce that AutoCal V3 is now available.
With 512MB storage for tune and log files, capacity of 600 VIN Licenses, and file transfer times up to 10 times faster than AutoCal V2, AutoCal V3 delivers significant hardware advancements to the tuning market.
AutoCal V3's built in USB drivers, field upgradeable firmware, and the custom menu system makes supporting remote customers a breeze.
Supporting GM, Dodge Cummins and Cummins Heavy Duty protocols on the one device, a future update for AutoCal V3 will enable license transfers between FlashScan and AutoCal V3 devices where the device license numbers match.
